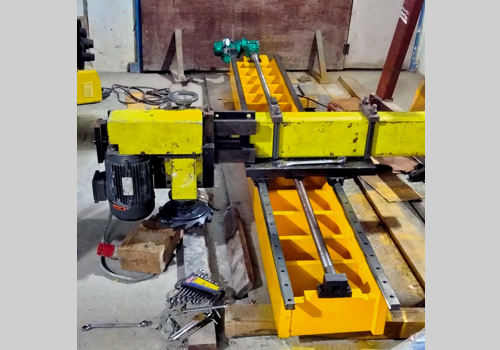

In-situ Flat Surface Milling

They all are primarily used for machining fabricated / weld built up / worn out / pre machined surfaces and generate a flat surface. These machines are different from our Circular Flange Facers as these can let the cutter be moved in linear patterns, as different from the circular path of the Flange facer. Complex and irregular shaped surfaces can be machined by controlling the X, Y and Z axis simultaneously. All the machines are transported in parts and can be assembled on site.

Operations Capable

The standard machine can perform operations such as,

• Face Milling
• End Milling
• Grooving
• Drilling

Capacity

Milling Cutter dia: - 125 mm to 400 mm dia.

• X axis – 3000 mm
• y axis – 4000 mm
• Z axis – 1000 mm

Tolerances Achievable

• Surface flatness can be 0.1mm per m. ( Depends on the site or job conditions )
• Surface finish is 1.6Ra. ( 0.8Ra can be achieved by using a grinding attachment )
